Products checked
Best Calf Machines by Footprint and Setup
Powertec P-SCR25 is the dedicated seated choice. Powertec L-SC19 earns the larger multipurpose lane. Titanium Strength CALFTR is the compact platform for a buyer who already has a suitable support setup.
We checked current maker specifications, direct order controls, specialist-store activity, published ratings, warranty language and setup information. We did not assemble or use this equipment.
Start here: tape out the full operating envelope, not just the frame.
Avoid buying: when the plate standard, delivery route, adjustment fit or floor requirement is still a guess.
Verify before paying: current manual, included hardware, warranty claimant and whether the floor needs anchoring.
Compare the three setups
Availability eliminated most of the obvious shortlist
Body-Solid's GSCR349B and GSCL360B were unavailable direct; Titan's 401473 and Valor's CC-5 were backordered; the ATX options checked were also unavailable. We kept two Powertec formats because both had US and European stock, and used Titanium Strength's rated block for the genuinely compact lane. Powertec Europe displayed 106 L-SC reviews, which shows active ownership interest but does not prove sales, fit or quality.
Translate the specification sheet into floor decisions
Machine footprint
The frame's published length and width.
It does not include the person, plates, lever travel or access aisle.
Mark the frame first, then add operating and loading zones.
A machine that fits between walls may still be unusable there.
Operating envelope
The total space occupied while entering, adjusting, loading and moving the machine.
Levers and plates can extend beyond the static footprint.
Use the current manual to trace every moving part.
Published dimensions are not always maximum in-use dimensions.
Starting weight
The resistance attributed to the unloaded moving mechanism.
Powertec publishes 15 lb for P-SCR25 and 35 lb for L-SC19.
Include it when comparing the first usable load step.
It is not the machine's shipping weight.
Maximum capacity
The maker's stated equipment load ceiling under its conditions.
It helps screen plate storage and structural limits.
Stay within the current manual and every weaker component in the setup.
A capacity is not a recommended working load.
Plate standard
The hole and horn diameter that must match.
The L-SC page notes optional one-inch horns; the standard configuration must be confirmed in the cart.
Measure existing plates and ask what horns and collars ship.
“Plate loaded” does not guarantee compatibility with plates you own.
Fixed stop
A structural limit that arrests lever travel at a defined point.
L-SC19 combines a user control with a fixed lower stop.
Confirm the stop and start control are reachable after adjustment.
A stop does not remove the need to follow setup instructions.
Platform rating
The maximum published load for the block itself.
CALFTR's 250 kg figure says nothing about a separate bench, rack, bar or floor.
Use the lowest limit in the complete arrangement.
Do not transfer one component's rating to the whole setup.
Three lanes with different hidden requirements
| Product | Published frame | Published rating | Not included or unresolved |
|---|---|---|---|
| Powertec P-SCR25 | 54 x 23 x 40 in; 85 lb | 1,000 lb max; 15 lb unloaded start | Plates, collars, exact anchoring rule and your thigh-pad fit |
| Powertec L-SC19 | 58 x 55 x 61.6 in; 197 lb | 500 lb max; 35 lb unloaded start | Weights; optional 1-in horns; exact anchoring rule and overhead clearance |
| Titanium Strength CALFTR | 73 x 35 x 8.8 cm; 6 kg | 250 kg platform maximum | Every support and resistance component; exact product warranty tier |
Ratings above repeat maker specifications for equipment comparison. They are not advice about how much anyone should load or use.
Choose the mechanism before the brand
Dedicated seated machine
Powertec Seated Calf Raise P-SCR25
This is the cleanest dedicated choice when the 54-inch length fits and a seated lever is the exact mechanism wanted.
Useful facts: 23-inch width, adjustable thigh pads, 85 lb machine weight, current US and EU order controls, and published 1,000 lb maximum capacity.
Tradeoff: it occupies a permanent single-purpose strip and the product page does not resolve floor anchoring.
Avoid if: thigh-pad range, plate fit, collars, delivery turn or current manual cannot be confirmed.
Closest alternative: CALFTR when storage and floor area matter more than a guided lever.
Evidence: high confidence in exact-model size, rating and orderability; origin and exact anchoring requirement remain unknown.
Multipurpose standing lever
Powertec Levergym Squat/Calf L-SC19
Choose the L-SC19 only when standing calf work and its squat function both justify a 58 x 55 inch frame.
Useful facts: 500 lb published capacity, 197 lb frame, integrated start/stop control, current US/EU stock and 106 displayed EU reviews.
Tradeoff: it is wider, taller and heavier; plate loading and lever access enlarge its real envelope.
Avoid if: shoulder-pad position, fixed stop, ceiling margin, plate horns or control reach is unresolved.
Closest alternative: P-SCR25 for a narrower dedicated seated footprint.
Evidence: high confidence in current exact model and transatlantic activity; origin and exact anchoring requirement remain unknown.
Compact platform for an existing support setup
Titanium Strength Calf Block CALFTR
This 6 kg block is the small-space choice for a buyer who can document a stable, compatible support and resistance arrangement.
Useful facts: in stock, 73 x 35 x 8.8 cm, 64 x 12 cm usable surface, ribbed 3 mm steel platform and 250 kg published block rating.
Tradeoff: it is not a machine and supplies no bench, bar, rack, Smith system, weights or independent support.
Avoid if: any other component is improvised, unrated, unstable or likely to move on the floor.
Closest alternative: P-SCR25 for a self-contained seated lever.
Evidence: high product-sheet and stock confidence; exact manufacturing origin and CALFTR-specific warranty tier were not found.

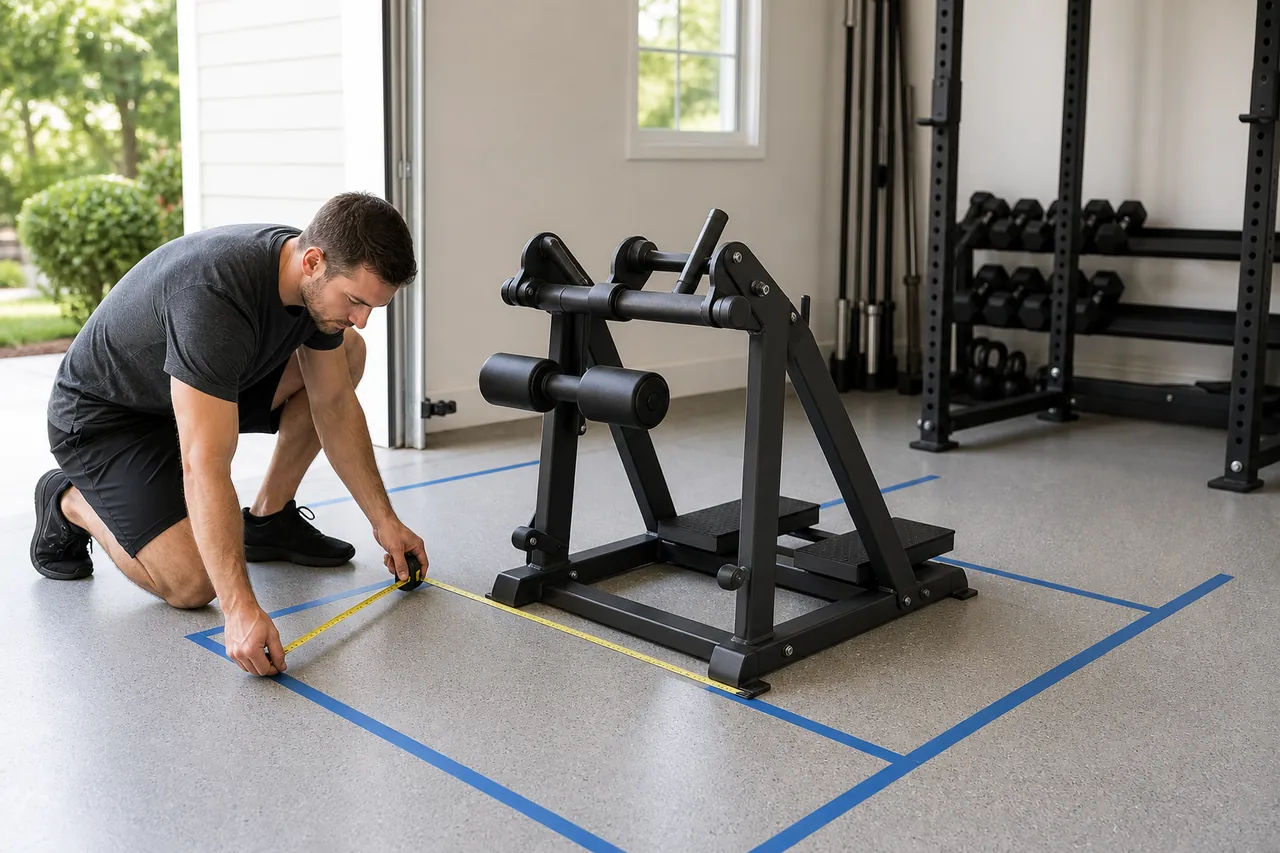

Tape four envelopes, not one rectangle
Mark the published length and width on the intended level floor.
Add lever, footplate and pad travel from the current manual.
Add plate diameter, horn access and room for collars and hands.
Add entry, adjustment and an unobstructed exit path.
Then carry a cardboard rectangle matching the largest shipping-box face through every door and turn. Ask the seller for package dimensions when they are absent.
Write a commissioning card before loading plates
For CALFTR, add the rated limits and condition of every independent support component. Reject rocking, sliding, missing hardware, damaged welds or a setup that conflicts with current instructions.
Ratings do not travel between components
A machine capacity applies to that machine under the maker's conditions. A block rating applies to the block, not the bench, rack, bar, collars, floor or person beside it. Treat every interface as a separate buyer check: horn to plate, collar to horn, pad to adjustment range, foot to platform, frame to floor and machine to room. The complete arrangement is constrained by its least capable or least stable part.
Powertec warns that alterations can void warranty coverage. Keep drilling, welding and substitute hardware out of the buying plan unless the current manufacturer instructions explicitly authorize them.
Physical, origin and written-protection details
| Product | Size / weight | Construction | Origin | Brand | Warranty / support |
|---|---|---|---|---|---|
| Powertec P-SCR25 | 54 x 23 x 40 in; 85 lb. | Plate-loaded steel frame with adjustable thigh pads; checked page does not state gauge. | Exact manufacturing country not disclosed. | Powertec; US headquarters in Paramount, California; brand states 28+ years. | US home terms: lifetime frame, 5-year moving frame, 2-year components, 1-year wear items; original registered purchaser; verify market terms. |
| Powertec L-SC19 | 58 x 55 x 61.6 in; 197 lb. | Plate-loaded steel lever frame, footplate, shoulder pads and controls; checked page does not state gauge. | Exact manufacturing country not disclosed. | Powertec; US and European offices; plate-loaded home strength equipment. | Same US home schedule; alterations can void coverage and local terms may differ. |
| Titanium Strength CALFTR | 73 x 35 x 8.8 cm; 6 kg. | 3 mm ribbed steel platform, 2 mm steel legs, powder coat and rubber-capped feet. | Exact manufacturing country not disclosed. | Titanium Strength; specialist strength/cardio equipment seller and brand. | Exact CALFTR product tier not identified; obtain written terms naming claimant, exclusions and duration. |
Sources checked
Maker pages support specifications and warranty limits; specialist stores support observable orderability. Links are not affiliate links.
- Powertec P-SCR25 US
- Powertec P-SCR Europe
- Powertec L-SC19 US
- Powertec L-SC Europe
- FitnessImpulse L-SC stock
- Powertec home warranty FAQ
- Powertec parts and service
- Powertec light-commercial terms
- Titanium Strength CALFTR
- CALFTR product sheet
- Valor CC-5 status
- Body-Solid GSCR349B status
- Titan seated calf status
Found a changed specification or stock state? Email Garage Gym Power with the exact URL, region and date.
